Product Summary
The GS71024T-12IT is a high speed CMOS static RAM organized as 65,536 words by 24 bits. Static design eliminates the need for external clocks or timing strobes. The GS71024T-12IT operates on asingle 3.3 V power supply, and all inputs and outputs are TTL-compatible. The GS71024T-12IT is available in a 6 mm x 8 mm Fine Pitch BGA package, as well as in a 100-pin TQFP package.
Parametrics
GS71024T-12IT absolute maximum ratings: (1)Supply Voltage VDD: –0.5 to +4.6V; (2)Input Voltage VIN: –0.5 to VDD + 0.5V (≤ 4.6 V max.); (3)Output Voltage VOUT: –0.5 to VDD + 0.5V (≤ 4.6 V max.); (4)Allowable TQFP power dissipation PD: 1W; (5)Allowable FPBGA power dissipation PD: 1W; (6)Storage temperature TSTG: –55 to 150°C.
Features
GS71024T-12IT features: (1)Fast access time: 8, 9, 10, 12, 15 ns; (2)CMOS low power operation: 190/170/160/130/110 mA at minimum cycle time; (3)Single 3.3 V ± 0.3 V power supply; (4)All inputs and outputs are TTL-compatible; (5)Fully static operation; (6)Industrial Temperature Option: –40 to 85°C.

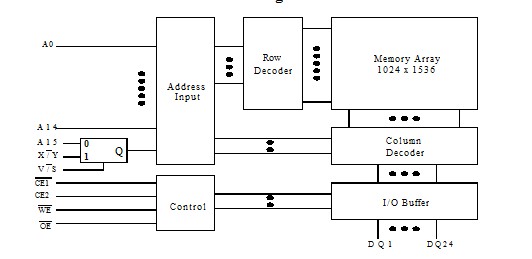

Diagrams
 |
